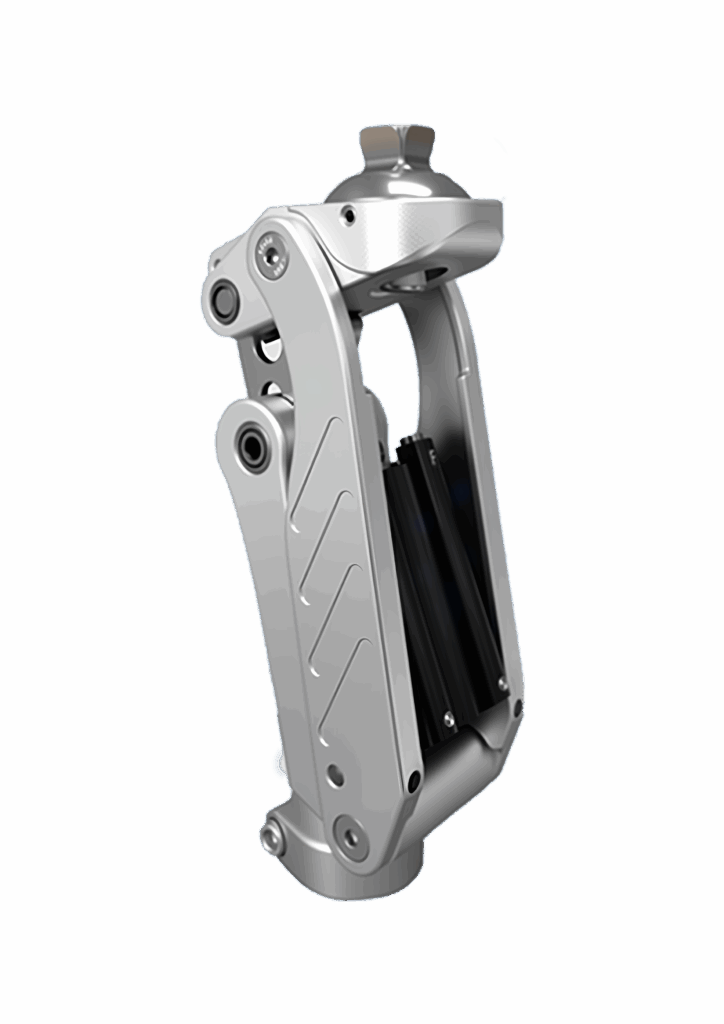

Series KPK201
It is a four-axis prosthetic knee joint with fluid-mediated adjustment of knee flexion and extension damping. The four axis construction ensures that the joints have a good level of safety. By regulating the flow of fluid, the rate of joint flexion and extension can be effectively controlled, allowing the user to achieve a good gait.
| MODEL | CONNECT STYLE | LOAD | MATERIAL |
| KPK201/P5 | 4-SIDED PYRAMID | P5(100 KG) | AL |
| KPK201(ST)/P6 | THREAD | P5(100 KG) | AL |
| KPK201(KD)/P6 | HORN PLATE | P5(100 KG) | AL |
- Structure Width： 59mm
- Structure Height： 206mm
- Upper pyramid adaptor
- quadrature adjustment： 5mm
- Max User Weight： 100Kg
- Maximum knee flexion angle 154°
