Series KPK402

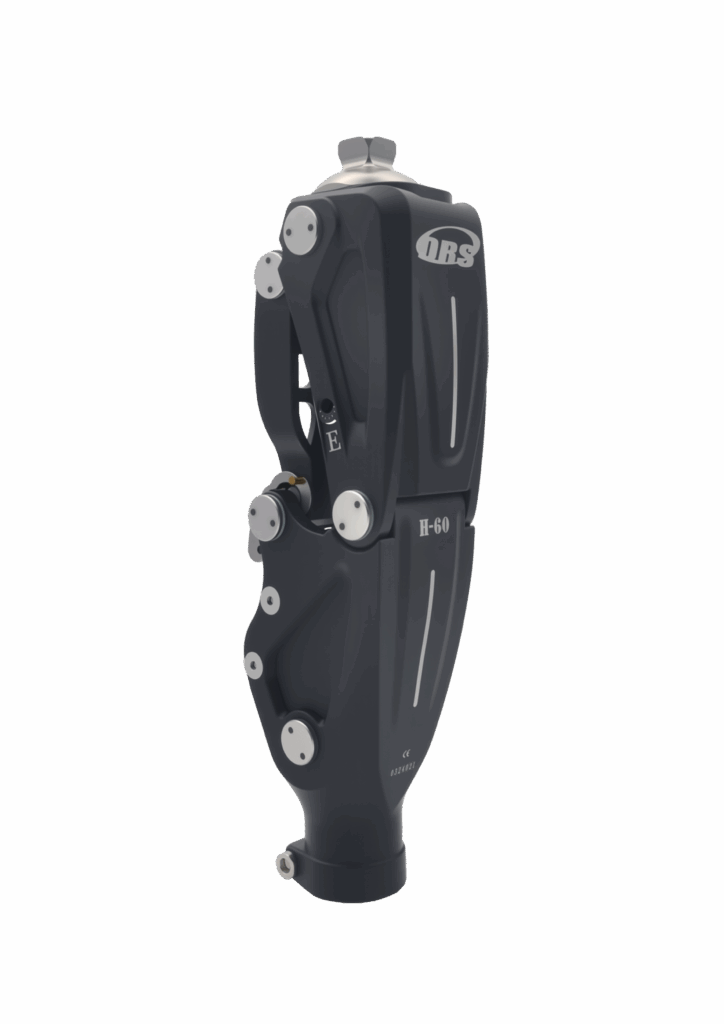

It is a four-axis prosthetic knee joint with fluid-mediated adjustment of knee flexion and extension damping. The four axis construction ensures that the joints have a good level of safety. By regulating the flow of fluid, the rate of joint flexion and extension can be effectively controlled, allowing the user to achieve a good gait.
| MODEL | CONNECT STYLE | LOAD | MATERIAL |
| KPK402/P5 | 4-SIDED PYRAMID | P5(100 KG) | AL |
| KPK402(ST)/P6 | THREAD | P5(100 KG) | AL |
| KPK402(KD)/P6 | HORN PLATE | P5(100 KG) | AL |
- Structure Width： 57.5mm
- Structure Height 264.5mm
- Knee Joint Weight： 1072g
- Upper pyramid adaptor
- quadrature adjustment： 5mm
- Maximum knee flexion angle： 150°
- Max User Weight 100Kg
