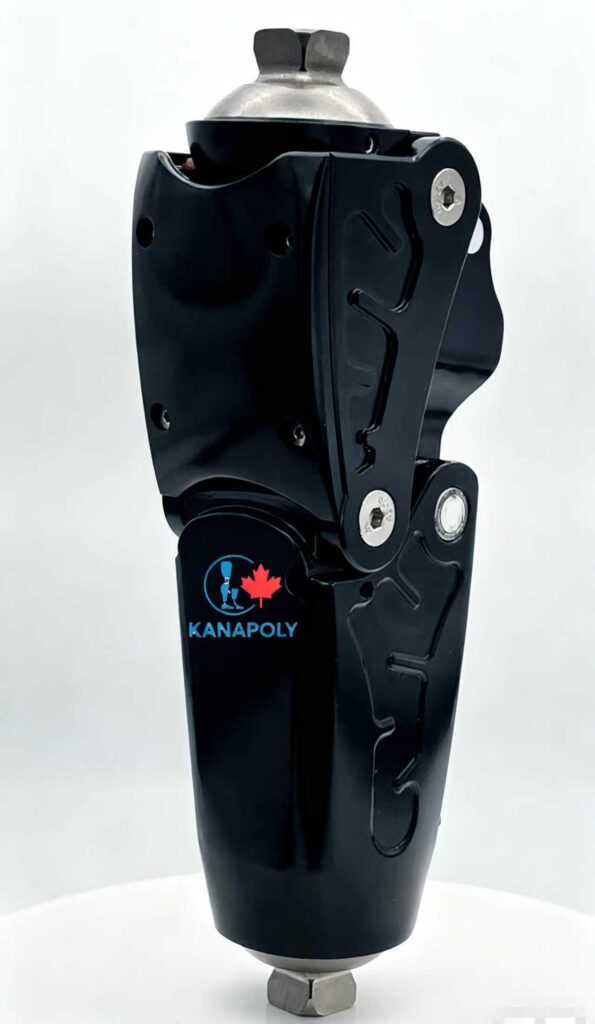

Series KPK203
It is a multi-axis prosthetic knee joint with fluid-mediated adjustment of knee flexion and extension damping. The multi axis construction ensures that the joints have a good level of safety. By regulating the flow of fluid, the rate of joint flexion and extension can be effectively controlled, allowing the user to achieve a good gait.
| MODEL | CONNECT STYLE | LOAD | MATERIAL |
| KPK203/P6 | 4-SIDED PYRAMID | P6(125 KG) | AL |
- Structure height: 211.97mm;
- Structure width:51.6mm;
- Four-pronged cone adjustment: 5mm;
- Maximum knee flexion angle: 142º;
- Overall weight: 950g;
- Maximum patient weight: 125kg;
